Magnetic Gripper Type

In general, it is a Inpal 1000 palletizing system. By operating the cycle back, instead of palletizing, depallitizing is done. It is mainly used for metal cans and tins. One arm handles products on the pallet in layers, while the others arm handle the pallet or separator depending on the product.
System Specifications
Depalletizing Speed (max.) 5 layers/min
Pallet Size (mm) 800 x 1200 / 1000 x 1200 / Viol Pallet
Package Dimension (max.)     1200 x 1000 x 500 mm
Layer Weight (max.) 400 kg
Pallet Weight (max.) 2000 kg
Installed Power (kW) 13
Power Consumption (kW)     1
Air Consumption (l/min)     80
“Our right for all sorts of modification for providing improvement in the dimensions and technical properties are reserved”

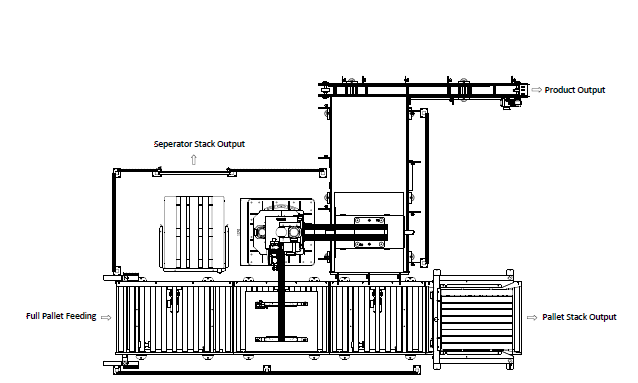

System Layout
