Cartesian Palletizing System

WHY INPAL 100C
It is a system consisting of a gripper operating on X, Y, Z axes and a rigid body carrying it.
It uses pick and place principle for palletizing. For lower product flows and multiple lines, cartesian system can be the right option.
It provides low budget solution for businesses.

System Specifications

Palletizing Speed (max.)	5 layers/min
Pallet Size (mm)	800 x 1200 / 1000 x 1200
Package Dimension (max.)	1200 x 1000 x 500 mm
Layer Weight (max.)	400 kg
Pallet Weight (max.)	2000 kg
Installed Power (kW)	12
Power Consumption (kW)	2
Air Consumption (l/min)	80
“Our right for all sorts of modification for providing improvement in the dimensions and technical properties are reserved”

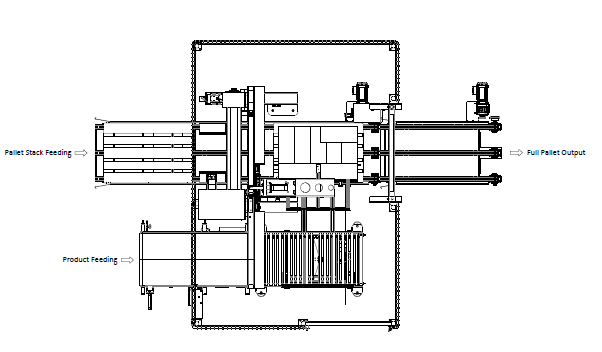

System Layout
